Solution

solution
Shangcon Intelligence takes customer needs as the starting point and provides customers with all-round solutions
Vehicle human-machine interface system is the interface between vehicle equipment and driver. The device operation information can be transmitted to the driver through text, image, sound and other means, and the query or parameter setting information can be input to the vehicle equipment through the driver's input. The system is used to assist the driver in the safe driving of the train. It provides clear and intuitive driving information to the driver through the display screen, and assists the driver to complete a series of information entry and equipment daily check functions through the touch screen operation. The driver interface can be humanized according to the needs of users.
Rail Transit
Project overview
The vehicle human-machine interface system is the interface between the vehicle equipment and the driver. It can transmit the operation information of the device to the driver by means of text, image, sound, etc., and input the query or parameter setting information into the vehicle equipment through the input of the driver.
The system is used to assist the driver in the safe driving of the train. It provides clear and intuitive driving information to the driver through the display screen, and assists the driver to complete a series of information entry and equipment daily check functions through the touch screen operation. The driver interface can be humanized according to the needs of users.


System requirement
1.Hardware platform: high-performance embedded motherboard, with powerful data processing capabilities and logic control capabilities
2.Software platform: Embedded real-time operating system, using high-level language programming, to ensure high reliability and high portability of the system
3.Display: The display is intuitive and clear, requiring sunlight to be visible, and can achieve multi-task display mode
4.Dual network redundancy technology and secure communication protocol are used to communicate with ATP to effectively ensure the security and availability of information.
5.Large capacity storage, while seismic performance to meet the use of the train environment
6.Abundant external interfaces, RS232, USB and RJ45 interfaces can be provided to communicate with peripheral devices;

Shangcon Solution

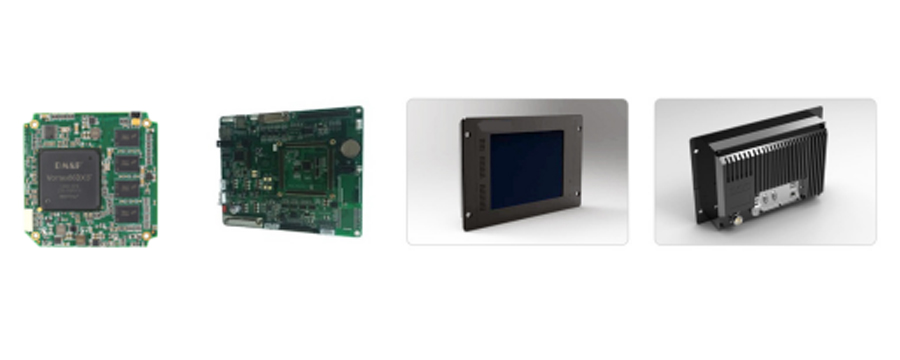

1. 1.Overall solution: SOM core module + expansion baseboard
2. System configuration: Wince7.0 embedded operating system
3. Hardware configuration: 1G main frequency dual core, 1G on-board memory, 8G on-board storage
4. Display configuration: LVDS, 12 "LED LCD screen, high brightness 800, visible in sunlight
5. I/O interface: 2*CAN, 2*RS232, 2*LAN, 4*USB
6. Ambient temperature: -40℃-+85℃
7. Special requirements: EN50155 certification, three anti-paint, network port isolation, under fill

System architecture：
