Shangcon intelligent to customer needs as the starting point, to provide customers with a full range of solutions.
Power quality analyzer is a special product for the detection and analysis of power grid operation quality. It can provide harmonic analysis and power quality analysis in power operation, and can conduct long-term data acquisition and monitoring of power grid operation. At the same time, it is equipped with power quality data analysis software to carry out various analysis of the measurement data uploaded to the computer.
Intelligent Power

System requirement
1、Hardware platform: High-performance PC104 embedded motherboard, with powerful data processing capabilities and logic control capabilities
2、Software platform: Embedded real-time operating system, using high-level language programming, to ensure high reliability and high portability of the system
3、Display requirements: high brightness LED LCD screen, visible in sunlight
4、Need to configure redundant, independent double 100M industrial Ethernet, but also RS232 communication interface, you can choose a variety of communication methods to exchange data with the remote management center
5、Large capacity storage space, to meet the power quality monitoring device for data storage requirements, real-time data is not lost

Shangkong Solution

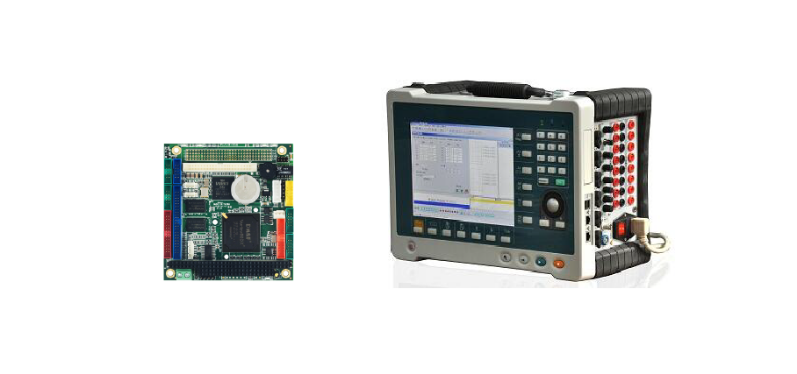

1. Overall solution: Customize the multi-network port PC104 embedded motherboard
2. System configuration: Wince6.0 embedded operating system
3. Hardware configuration: main frequency 800MHz, memory onboard 256MB, storage IDE DOM;
4. Display configuration: 8.4 inch LED LCD screen, high brightness 600, visible in sunlight;
5. I/O interface: 2*RS232,2*USB, 3*LAN;
6. Ambient temperature: -20℃ -+ 70℃
7. Power supply: +5V@800mA

System architecture：
